Material: Granite, marble, basalt, limestone, quartz, pebble, copper ore, iron ore and so on

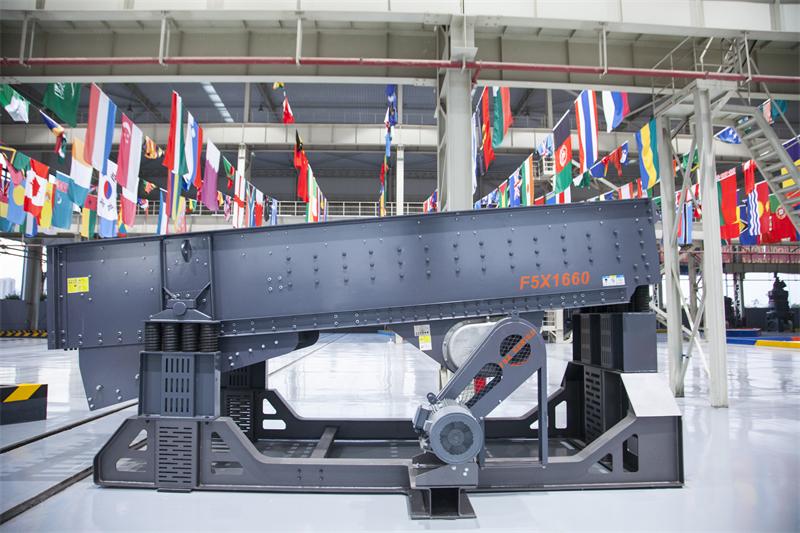

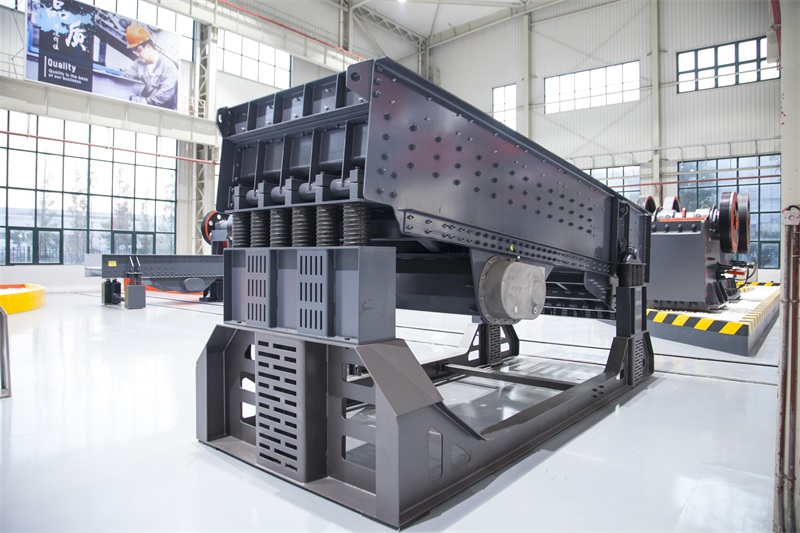

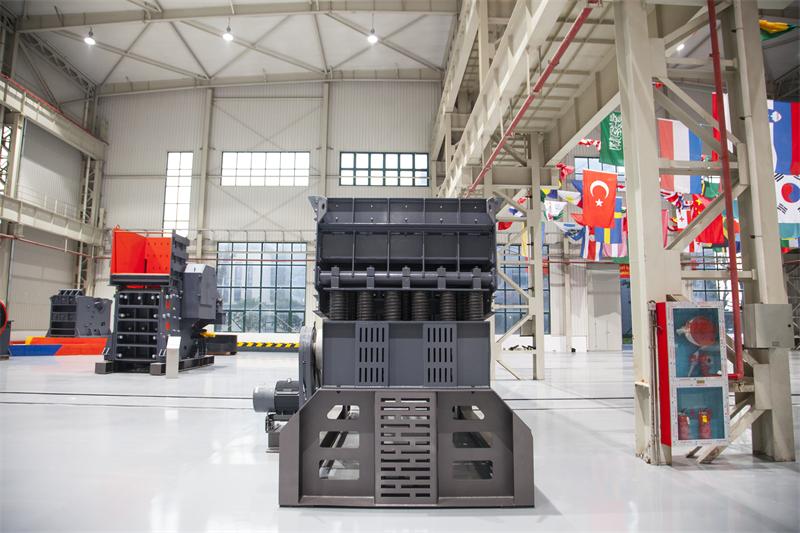

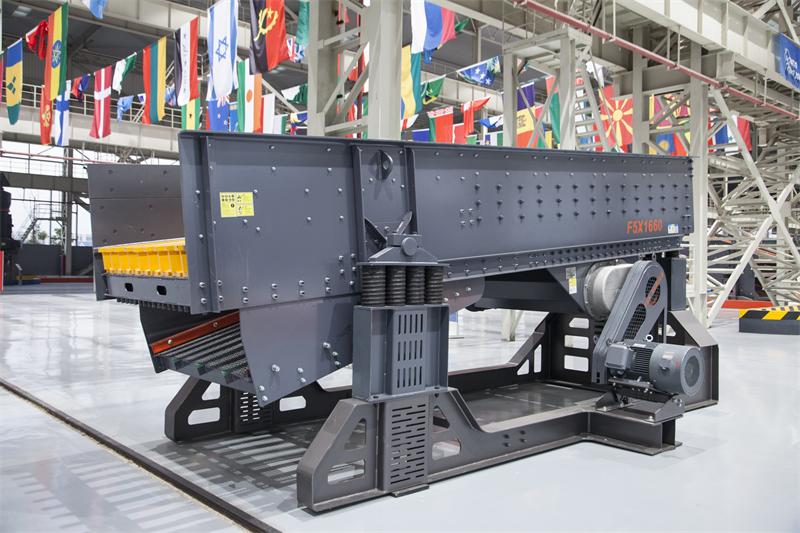

F5X Vibrating Feeder is designed for super-heavy operation condition. It has 4.5G of strong vibration intensity and extremely firm chute body structure. With 1600TPH capacity, 1.5m maximum feeding particle size and 25~45 m³ standard capacity of bin, it is able to bear 80 m³ compartment pressure, which adapts to heavy compartment pressure, high load and heavy impact and other similar poor conditions during the primary feeding operation.
Product Features:
Super-heavy design and 4.5G of strong vibration intensity release better performances.
Super-Heavy Chute Body Able to Hold High Pressure and Strong Shocks
Different from the light chute of traditional feeders which use 16# or 20# joist steel and box iron as the longitudinal beam, the super-heavy chute F5X Vibrating Feeder adopts large rectangular tube, able to hold high cabin pressure and strong shocks from falling materials and able to feed materials continuously.
Strong Vibration Intensity, Large Operation Capacity
Vibration intensity G-force is the key index to measure vibration machine's performance. The stronger it is, the larger operation capacity is. F5X Vibrating Feeder benchmarks international leading technologies and adopts advanced design philosophy and manufacturing technique. The vibration intensity is up to 4.5G, which is 30% larger than traditional devices. In the same specification, it has more operation capacity.
Efficient, Reliable & Convenient FV Super Vibrator
To satisfy higher performance and heavy load, repeated start-stop, frequency change and other poor conditions, F5X Vibrating Feeder is equipped with FV super vibrator just like a heart, which achieves reliable operation, convenient maintenance, interchange of components and high degree of commonality. The lubricating maintenance period is up to 1500 hours.
Reasonable Arrangement of Rods, Efficient Pre-screening Function
The rods are made of NM wear-resistant steel material which has long life expectancy and high screening efficiency. The installation is quite easy, too. The ladder structure formed by two sets of rods can screen out part of fine materials, so the load of primary crusher is reduced greatly.
Digitized Machining, Higher Precision
MiningAlliance has dozens of CNC (Computer numerical control) machine production lines. From steel plates' cutting, bending, planning to final painting, all steps can be controlled numerically. High processing precision assures that key parts have higher standards.
Sufficient Spare Part Supply, Worriless Operation
MiningAlliance, as a prominent enterprise integrating machine production and sales in mining machinery industry, is dedicated to be responsible for every product. Meanwhile, MiningAlliance always makes every effort to offer customers comprehensive technical services and sufficient spare parts to let them be free from worries about project operation.
Working Principle
F5X Vibrating Feeder uses a motor to drive the eccentric shaft inside the vibrator. The shaft is connected by gears with another shaft juxtaposed to each other. When these two shafts rotate, there is the exciting force. The shaft is arranged in such a way that the resulting stroke slowly pushes materials from the feed end to the discharge end. At the same time, materials are sieved to make the particles more uniform. Typically, a bar screen is equipped at the discharge end of the F5X Vibrating Feeder. Through it, materials whose sizes are smaller than the spacing between two bars are screened out and the larger-sized materials are conveyed into the crusher.
Specification
Model
Size of funnel(mm)
Max. feeding size(mm)
Capacity(t/h)
Grizzly length(mm)
Power(kw)
F5X10(M)
1000×4500
700
400
1×1200
15
F5X134(M)
1300×4500
900
600
1×1200
22
F5X136(S)
1300×6000
900
600
2×1200
30
F5X16(M)
1600×4500
1200
1000
1×1200
22
F5X166(S)
1600×6000
1200
1000
2×1200
30
F5X2060
2000×6000
1500
2400
2×1200
45
F5X1354G
1300×5400
900
500
4×900
22
F5X1654G
1600×5400
1200
800
4×900
30
F5X2054G
2000×5400
1500
1200
4×900
45
Note: “M” shows solid pan configuration , “S” shows second screen deck configuration. At 5° incline and 1,6 t/m³. Capacities depend not only on feeder size but also feeder inclination, feed gradation, etc.
